MAG254 Set-Top Box:
- MAG254 box
- User manual
- Mini jack cable to RCA (A/V)
- Power adapter 12V 1A
- Remote control
- 2 AAA batteries
164.47 € Less VAT / VAT Inc. 199.00 €
What is it?
MAG 254 is a powerful Set-Top Box with efficient processor STiH207 and increased RAM memory, and it is an optimal solution for IPTV/OTT projects. The Set-Top Box is designed to fulfill business projects of internet providers, OTT operators and content aggregators. The increased productivity of MAG 254 enables to use resource-intensive interactive applications and support 3D-video. STiH207 650Mhz, Linux 2.6.23, Composite AV, HDMI 1.4, USB x 2, S/PDIF, LAN, WiFi Ready
The Support of 3D-video
MAG 254 supports video playback in 3D format, which is recently becoming more and more popular.
High Quality of Sound and Image
The audio output S/PDIF allows connecting multichannel HighEnd system to the Set-Top Box. HDMI 1.4A provides the highest quality of sound and image.
Quick Data Processing
Thanks to its power and high performance components, our Set-Top Box MAG 254 can efficiently process big data files, including high resolution digital video operations.
Functions on Demand
MAG 254 plays the latest audio and video formats and it supports subtitles,format and image settings, choice of audio track and work with the playlists.
Specifications

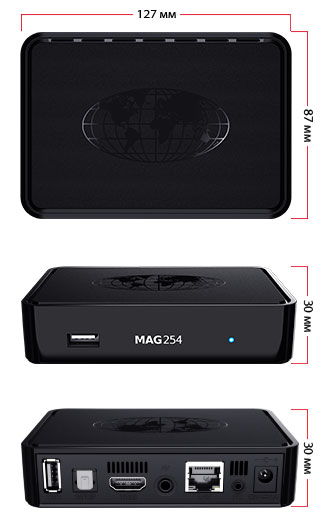

Dimensions
| Width/depth/height | 127/87/30 (mm) |
| Weight | 190g |
Hardware
| Processor | STiH207 |
| RAM | 512 Мб |
| Flash memory | 256 Mb |
Software
| Operating system | Linux 2.6.23 |
| Built-in Media Portal with WebKit-based IPTV-functionality HTTP 1.1, HTML 4.01 XHTML 1.0/1.1; DOM 1, 2, 3, CSS 1, 2, 3; XML 1.0, XSLT 1.0, XPath 1.0 ; SOAP 1.1; JavaScript ECMA-262, revision 5; Media JavaScript API; C layer SDK | |
| DRM option | Secure Media |
| Middleware supported | Stalker, Netup, SmartLabs, Netris, Beenius |

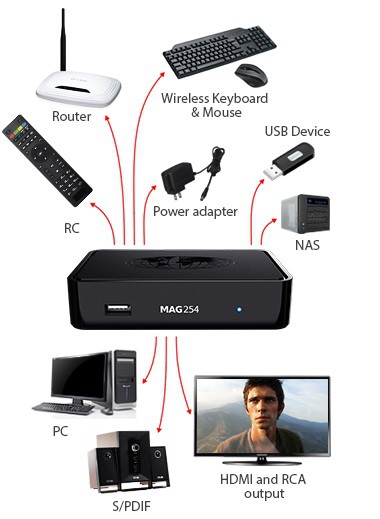

Interfaces
| Audio output S/PDIF, HDMI 1.4-output, Composite + stereo A/V output, Ethernet 100 Mb/s USB 2.0 (WiFi-adapter can be connected) |
Sources of media content
| PC and NAS in local network, Stream media protocols (RTSP, RTP, UDP, IGMP, HTTP), USB-devices |
Audio&Video
| Audio сodecs | MPEG-1 layer I/II, MPEG-2 layer II, MPEG-2 layer III (mp3), Dolby Digital (optional), DTS (optional) |
| Audio formats | MP3, MPA, M4A, WMA (optional), Ogg, WAV |
| Video modes | 1080i, 1080p, 720p, 576p, 480р, PAL, NTSC |
| Video сodecs | MPEG1/2 MP@HL, H.264 HP@level 4.1, MPEG4 part 2 (ASP), WMV-9 (optional), VC1 video, XviD; HD video supporting (up to 40 Mbit/s and above) |
| Video containers | MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT, WMV |
| Image formats | JPEG, PNG, BMP, GIF, RAW |
| Subtitles | DVB, SRT, text MKV |
| Playlist formats | M3U |
